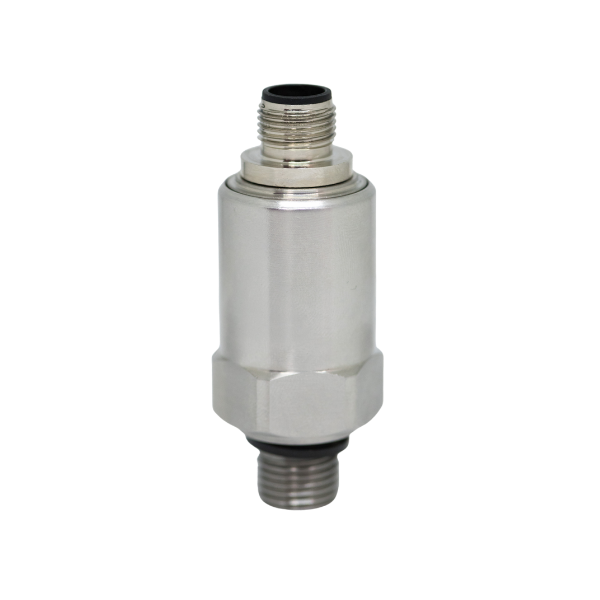

4-20mA Pressure Transducer; 0-16barg, Economical

The TSA-1200PT-0016AB-MA5 4-20mA pressure transmitter has been designed to be price competitive for volume users and are stocked locally.  The compact stainless steel design, uses an M12 electrical connection, popular among automation engineers, and also offers a IP67 seal when used with the appropriate locking M12 plug (optional extra).  Standard accuracy is ±0.5% with an over pressure limit of one and half times the rated pressure range.  1/4” BSP pressure connection is standard, with alternatives available on request.  Optional higher accuracy, outputs and electrical connections are also available.

Specifications:

• Economical - High Quality
• Measurement range: 0-16barg
• Process connection1/4" BSP
• Electrical output: 4-20mA output 2 wire
• Electrical connection: M12 Connector (IP67 with with M12 Plug & TSA Connector)
