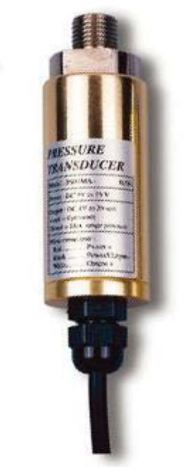

LUTRON PS100-2
2 BAR Pressure Sensor for PS-9303SD
Download Specifications (72.57 KB)2 BAR Pressure Transducer for Lutron PS-9303SD
Size: 30mm diameter
Cable length: 1m
Max capacity: 2 BAR (29 PSI)
Overload protection: 150% of max capacity
Process connection: 1/4" NPT, 1/4" PS (adpater provided)
Operating temp. range: 0 °C to 60 °C
Zero: ± 2%F.S. (Within 10 °C to 40 °C)
Span: ± 1 % F.S. (Within 10 °C to 40 °C / Linearity + Hysteresis + Repeatability)
