High Precision Pressure Transmitter Accuracy 0.05% F.S

Description

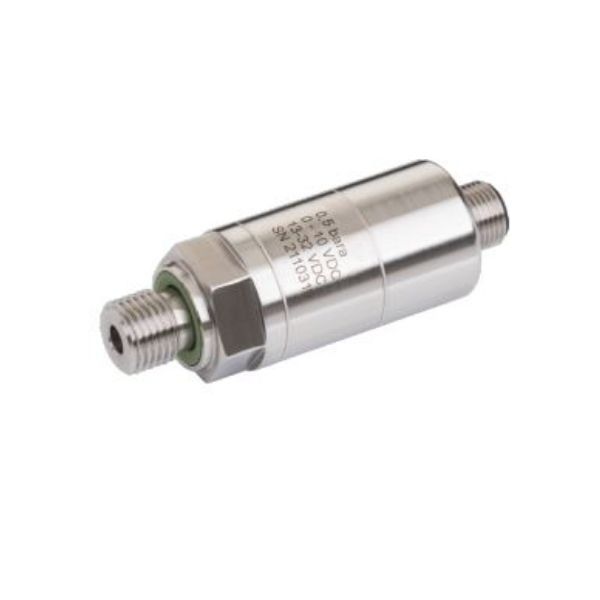

The Burster 8228 Series pressure transducers have a measurement accuracy of 0.05% F.S. For models with measurement ranges less than 1 bar this is 0.1% F.S. The pressure sensors are ideal for use as a reference sensor. The compact dimensions, robust housing, and industrial grade output signal made it suitable for a wide range of applications.  All components that come in contact with media are stainless steel.

Specifications:

  • Ranges from 0  - 0.1 bar up to 0 - 200 bar
  • Accuracy from 0.05 % F.S.
  • Output: 4-20mA or  0 ... 10 V
  • Absolute or Relative
  • Temperature range -20 ... +80 °C
  • Protection class IP67
  • Process: ¼” BSP
  • Connect: M12 4 pin

Images are for reference only, refer to product data sheet

SKU
Burster 8228 Series
