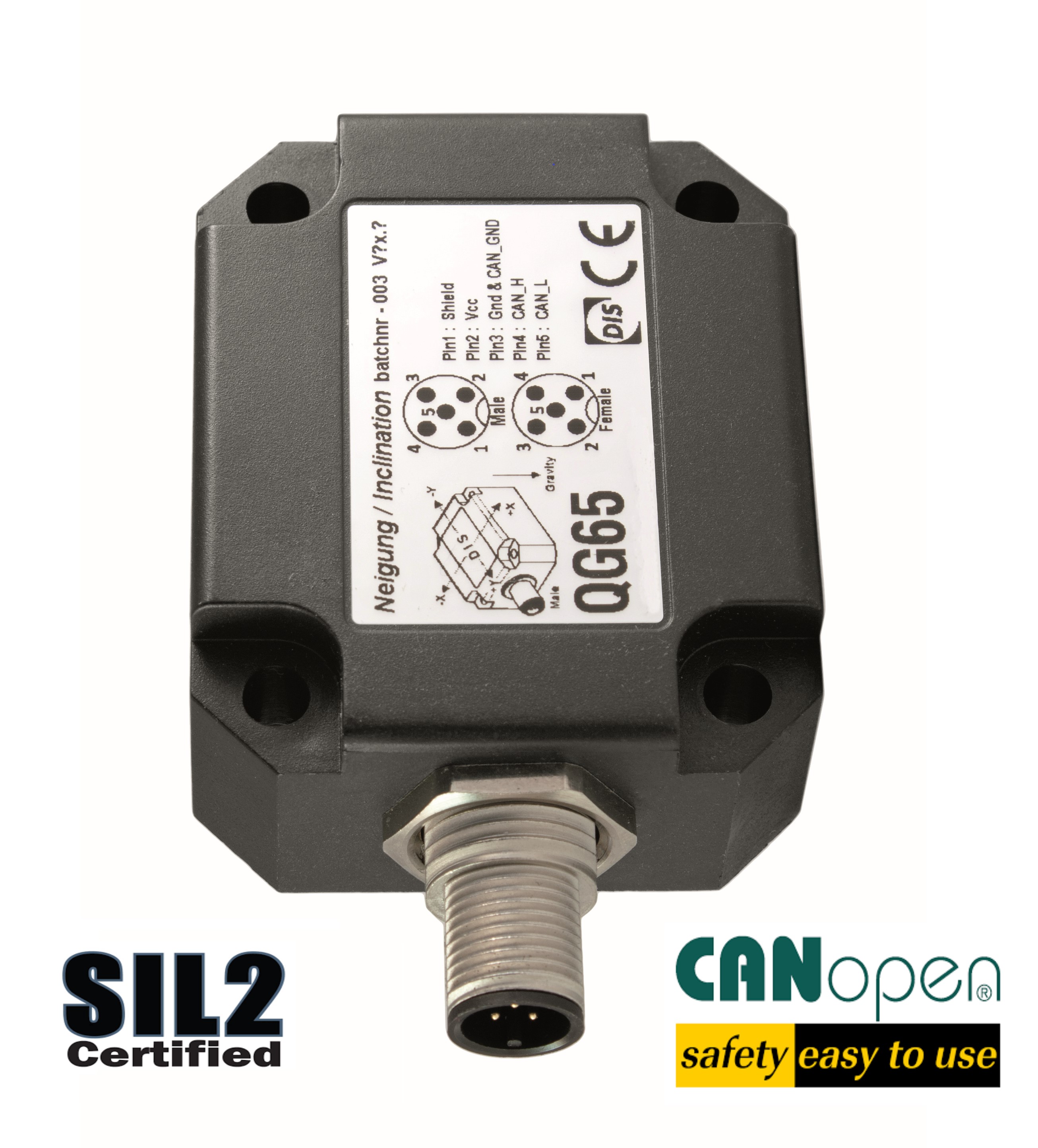

DIS QG65N-KIXv-360-CANS-CFM-UL-2d
Download Specifications (182.81 KB)Safety inclination sensor – 1 Axis
Vertical plane rotation
Programmable device Interface: CANopen Safety
Measuring range ±180°
SIL CL 2 (acc. to IEC 62061) PLd (acc. to EN ISO 13849)
2 x M12 8 pin connectors (Male & Female)
Power supply 10 ... 30 VDC
This QG series inclinometer measures angles on the vertical axis.
These inclinometers are based on robust MEMS technology, in which capacitance differences can be converted into an analogue voltage within a micro-mechanical sensor chip.
Can’t find what you need?
Call ADM on 1300 236 467
A member of our expert team will gladly help you find the right solution for your project or application.
Reliable and continuous angle measurement is crucial for the operation, safety, and functionality of machinery as well as static structures. The DIS Sensors QG Series meets this need by accurately measuring the tilt of objects in relation to gravity using MEMS technology.
